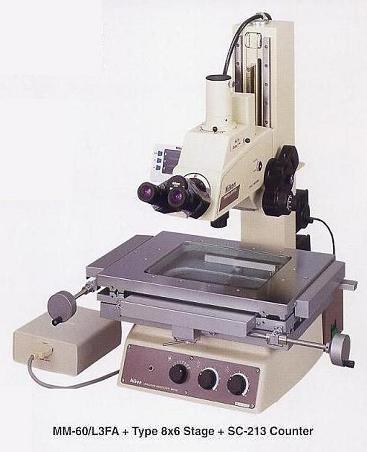

| MM－60/L3FA | |||
| MM－40/L3FA |  |
 |
 |
| MM－40/60系列 |
|
FA Type |
|
Z－Axis Measurements with Greater Precision |
|
這些顯微鏡上裝置了 Nikon 的獨特聚焦輔助系統（FA）為 Z 軸量測設計。聚焦輔助系統使對焦容易，即使更換不同物鏡，在不同的倍率和景深下，亦可使量測偏差最小化。同時在本體內加裝線性光學尺，使 Z 軸量測更精確。 |
| MM－60/L3FA | |||
| MM－40/L3FA | |
|
|
| • | 內建Z軸線性光學尺 |
| • | 三段式粗/中/微對焦旋鈕 |
| • | 三眼鏡頭含對焦指示器 |
| 注意：當使用聚焦輔助的時候，推薦使用10X、20X或50X物鏡和一個高亮度光纖照明裝置。 | |
|
|
|||
| MM－60/L3UFA | |||
| MM－40/L3UFA | |
|
|
| • | 內建Z軸線性光學尺 |
| • | 三段式粗/中/微對焦旋鈕 |
| • | 聚焦輔助表面照明 |
| 注意：當使用聚焦輔助的時候，推薦使用10X、20X或50X物鏡。聚焦輔助只能明視野觀察。 | |
|
|
|
|
規格表 |
||||
|
形式 |
MM-60/L3FA |
MM-40/L3FA |
MM-60/L3UFA |
MM-40/L3UFA |
|
光學頭 |
Erect image
Focusing-aid trinocular; inclined 25°
from horizontal |
－ |
||
|
目鏡筒 |
－ |
Erect image
trinocular TT*1/TI, inverted image binocular BI |
||
|
目鏡 |
CFWN10X (Field
No.20) |
CFWN10X, CFWN10X CM
(Field No.20) |
||
|
物鏡 |
Measuring
microscope objectives: |
CF Plan objectives
for metallurgical microscopes |
||
|
|
1X (W.D.;79mm), 3X
(W.D.;75mm), 5X (W.D.;64mm), 10X (W.D.;49mm), 20X (W.D.;20mm), 50X (W.D.;15mm),
100X (W.D.;4mm) |
|
||
|
對焦指示器 |
Provided |
Can be used for
brightfield only |
||
|
載物台 |
Type 10x6, Type
8x6, Type 6x4, Type 4x4, Type O3L, Type 2x2 |
Type 6x4, Type 4x4,
Type O3L, Type 2x2 |
Type 10x6, Type
8x6, Type 6x4, Type 4x4, Type O3L, Type 2x2 |
Type 6x4, Type 4x4,
Type O3L, Type 2x2 |
|
最大工件高度 |
200mm (7.87 in.) |
150mm (5.91 in.) |
200mm (7.87 in.) |
150mm (5.91 in.) |
|
170mm (6.69 in.)
with Type 10x6 stage |
170mm (6.69 in.)
with Type 10x6 stage |
|||
|
光源 |
12V-50W halogen
fiber-optics (for both diascopic and episcopic illumination) |
Diascopic
illuminator: 6V-20W |
Epi-illuminator:
12V-50W |
Epi-illuminator:
12V-50W |
|
Episcopic
illuminator: 12V-50W |
Diascopic
illuminator: 12V-50W |
Diascopic
illuminator: 6V-20W |
||
|
尺寸/重量 |
350 x 449 x 674mm
(13.8 x 17.7 x 26.5 in.) |
350 x 449 x 624mm
(13.8 x 17.7 x 24.6 in.) |
350 x 449 x 674mm
(13.8 x 17.7 x 26.5 in.) |
350 x 415 x 624mm
(13.8 x 16.3 x 24.6 in.) |
|
approx. 55kg (120
lb.) |
approx. 51kg (112
lb.) |
approx. 55kg (120
lb.) |
approx. 50kg (110
lb.) |
|
|
*1：Eyepiece
tubes TT are also available in crosshair reticle built-in types.
(Crosshair reticles cannot be removed.) |
||||

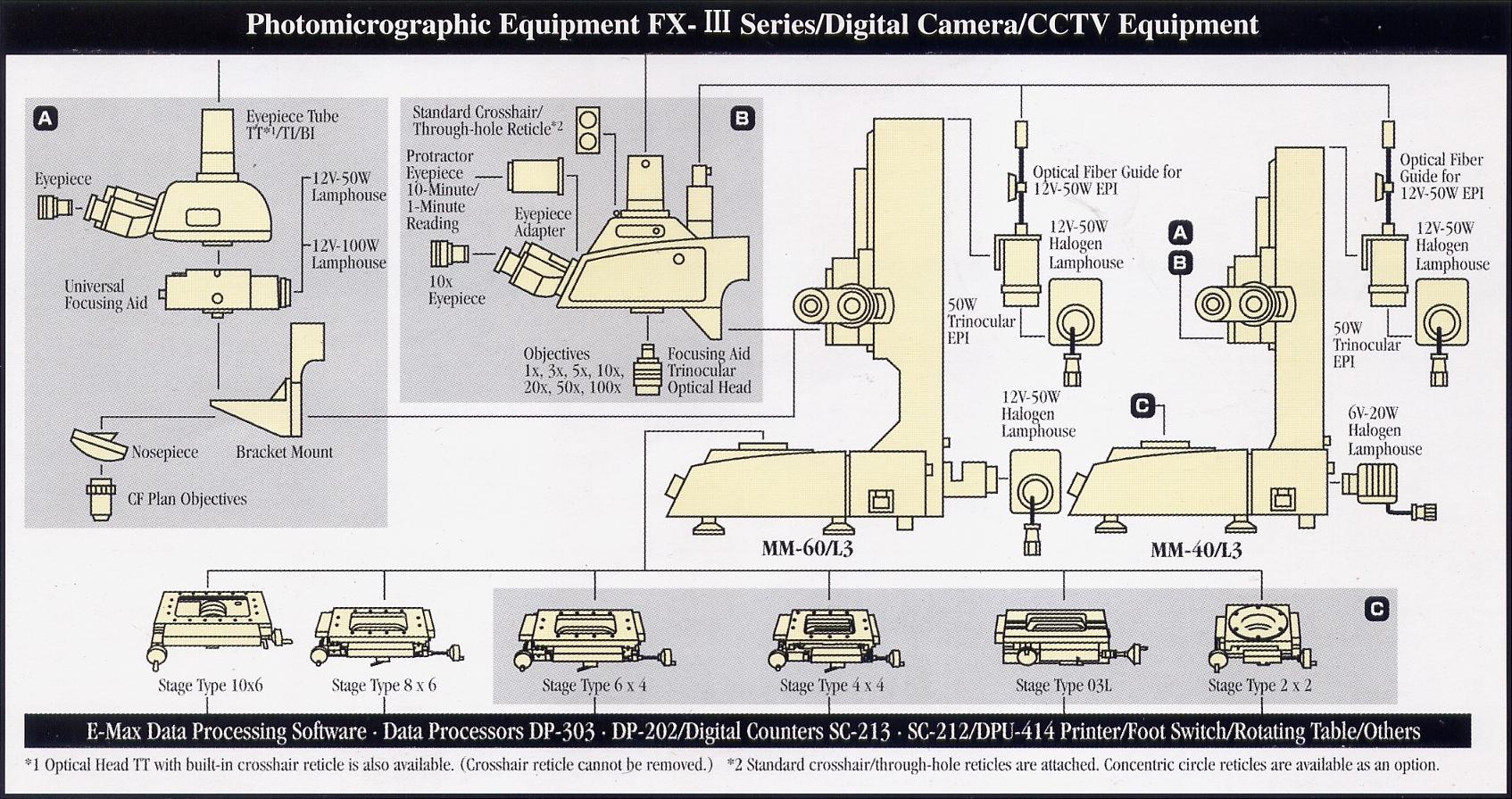

| 組合圖 | |
|
|
|
 |
 |
 |
 |
 |
 |
