| MM－40/60系列 |
|
Standard Type |
|
A Wide Variety of Models to Choose From |

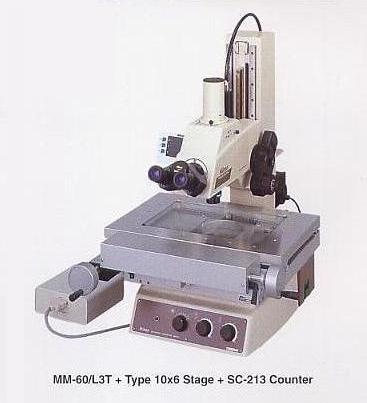

| MM－60 系列具有載物台 X 軸 250mm，Y 軸 150mm，和 Z 軸 200mm 的行程，MM－40 系列系列有 150 X 100 X 150mm 的行程範圍。為了要配合您的需求和預算，機型的廣泛多樣，包括 2或 3 粗 / 微的對焦把手、單眼或三眼鏡筒或 Z 軸的光學尺等。 |
| MM－60/L3T | |||
| MM－40/L3T | |
|
|
| • | 內建Z軸光學尺 |
| • | 三段式粗/中/微對焦旋鈕 |
| • | 三眼光學頭 |
|
|

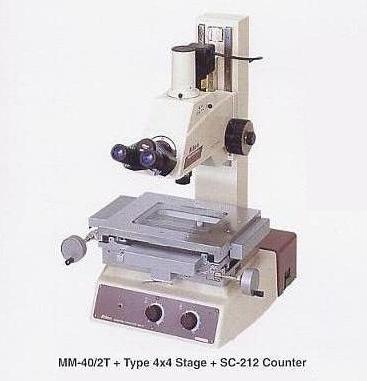

| MM－40/2T |  |
|
| • | 二段式中/微對焦旋鈕 |
| • | 三眼光學頭 |
|
|

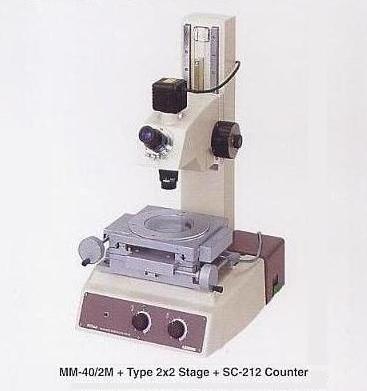

| MM－40/2M | |
 |
| • | 二段式中/微對焦旋鈕 |
| • | 單眼光學頭 |
|
|
|
規格表 |
||||
|
形式 |
MM-60/L3T |
MM-40/L3T |
MM-40/2T |
MM-40/2M |
|
光學頭 |
Erect image
trinocular; inclined 25° from horizontal |
Erect image
trinocular; inclined 30° from horizontal |
||
|
目鏡 |
CFWN10X (Field
No.20) |
CFWN10X (Field
No.20) |
Dedicated 10X
(Field No.20) |
|
|
物鏡 |
Measuring
microscope objectives: |
|||
|
1X (W.D.;79mm), 3X
(W.D.;75mm), 5X (W.D.;64mm), 10X (W.D.;49mm), 20X (W.D.;20mm), 50X (W.D.;15mm),
100X (W.D.;4mm) |
||||
|
載物台 |
Type 10x6, Type
8x6, Type 6x4, Type 4x4, Type O3L, Type 2x2 |
Type 6x4, Type 4x4,
Type O3L, Type 2x2 |
||
|
最大工件高度 |
200mm (7.87 in.) |
150mm (5.91 in.) |
||
|
170mm (6.69 in.)
with Type 10x6 stage |
||||
|
光源 |
12V-50W halogen
fiber-optics (for both diascopic and episcopic illumination) |
6V-20W halogen
diascopic illuminator built-in |
||
|
6V-20W halogen
episcopic illuminator built-in |
||||
|
(Episcopic
illumination on MM-40/2T and MM-40/L3T can be changed to a 12V-50W type.) |
||||
|
尺寸/重量 |
350 x 449 x 674mm
(13.8 x 17.7 x 26.5 in.) |
350 x 449 x 624mm
(13.8 x 17.7 x 24.6 in.) approx. 51kg (112 lb.) |
350 x 449 x 674mm
(13.8 x 17.7 x 26.5 in.) |
|
|
approx. 55kg (120
lb.) |
approx. 50kg (110
lb.) |

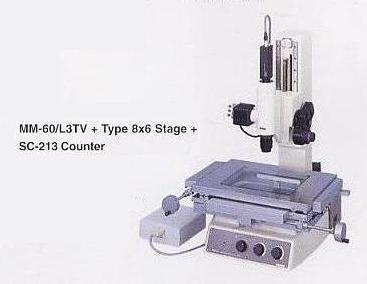

|||
| MM－60/L3TV | |||
| MM－40/L3TV | |
|
 |
| • | 內建Z軸光學尺 |
| • | 三段式粗/中/微對焦旋鈕 |
| • | 簡易影像頭 |
|
|

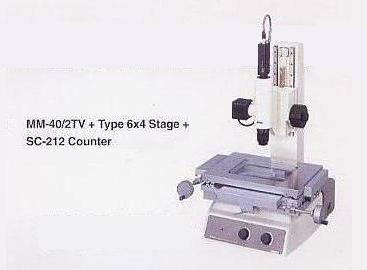

| MM－40/2TV | |
|
| • | 二段式中/微對焦旋鈕 |
| • | 簡易影像頭 |
|
|
|
規格表 |
|||
|
形式 |
MM-60/L3TV |
MM-40/L3TV |
MM-40/2TV |
|
光學頭 |
CCTV optical head |
||
|
目鏡 |
－ |
||
|
物鏡 |
Measuring
microscope objectives: |
||
|
1X (W.D.;79mm), 3X
(W.D.;75mm), 5X (W.D.;64mm), 10X (W.D.;49mm), 20X (W.D.;20mm), 50X (W.D.;15mm),
100X (W.D.;4mm) |
|||
|
載物台 |
Type 10x6, Type
8x6, Type 6x4, Type 4x4, Type O3L, Type 2x2 |
Type 6x4, Type 4x4,
Type O3L, Type 2x2 |
|
|
最大工件高度 |
200mm (7.87 in.) |
150mm (5.91 in.) |
|
|
170mm (6.69 in.)
with Type 10x6 stage |
|||
|
光源 |
12V-50W halogen
fiber-optics (for diascopic illumination) |
||
|
6V-20W halogen
fiber-optics (for episcopic illumination) |
|||
|
6V-20W halogen
fiber-optics (for both diascopic and episcopic illumination) |
|||
|
尺寸/重量 |
350 x 449 x 674mm (13.8 x 17.7 x 26.5 in.) |
350 x 415 x 624mm
(13.8 x 16.3 x 24.6 in.) |
350 x 415 x 674mm (13.8 x 16.3 x 26.5 in.) |
|
approx. 54kg (119
lb.) |
approx. 50kg (110
lb.) |
approx. 49kg (108
lb.) |
|

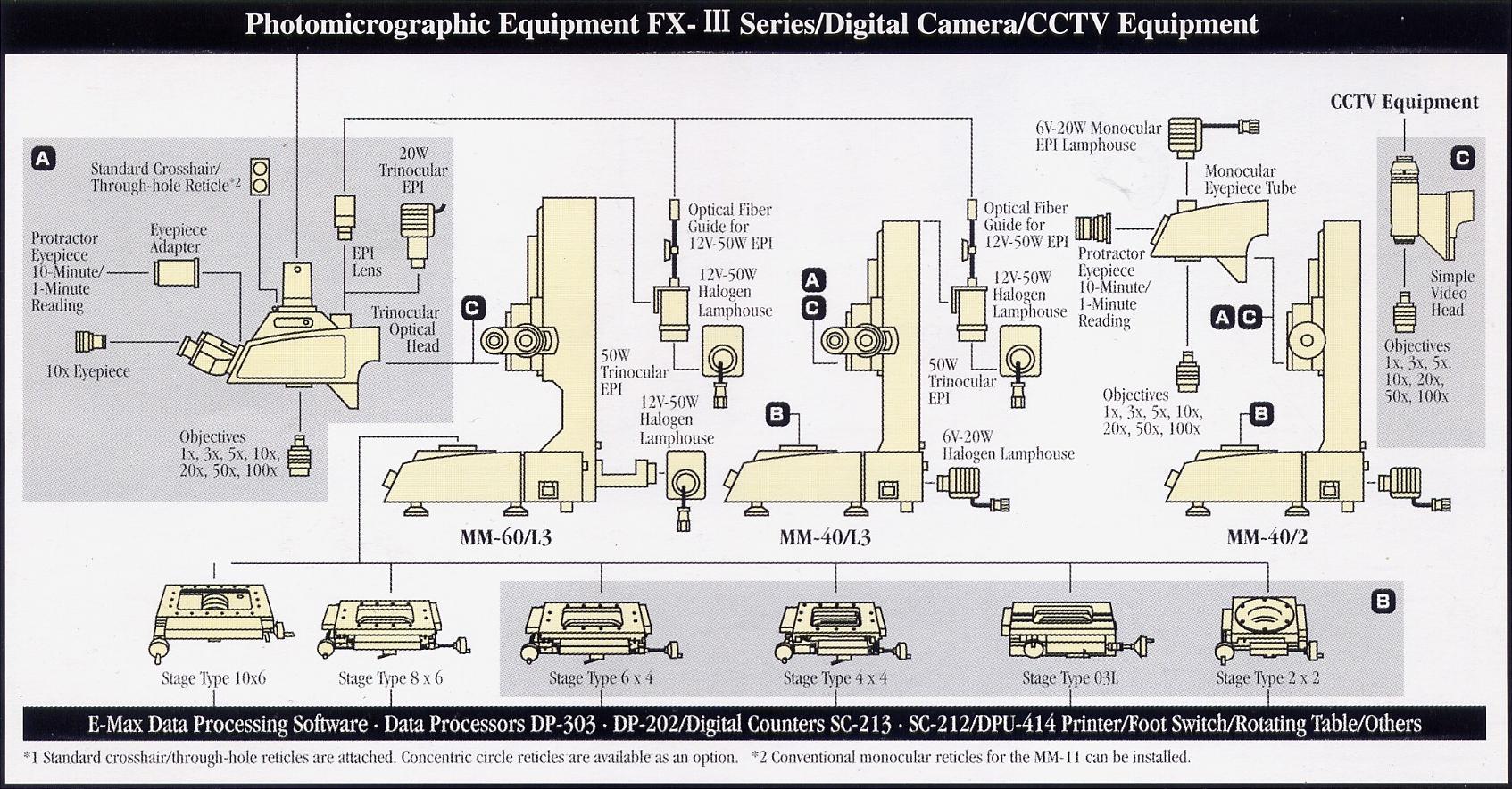

| 組合圖 | |
|
|
|
 |
 |
 |
 |
 |
 |
