| MM－60/L3U | |||
| MM－40/L3U |  |
 |
 |
| MM－40/60系列 |
|
Universal Type |
|
Providing the Features of Measuring and Metallurgical Microscopes |
| 結合量測和金相顯微鏡功能，這些機型允許精確的量測。他們也支援 Nikon 創新的 CF 無限遠光學系統，提供最高的解像力。除了明視野，因工件的性質而定，您也能使用暗視野、 DIC 和其他的照明技術。 |

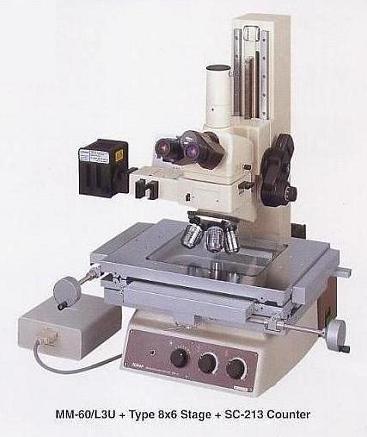

| MM－60/L3U | |||
| MM－40/L3U | |
|
|
| • | 內建Z軸線性光學尺 |
| • | 三段式粗/中/微對焦旋鈕 |
| • | 金相照明 |
|
|

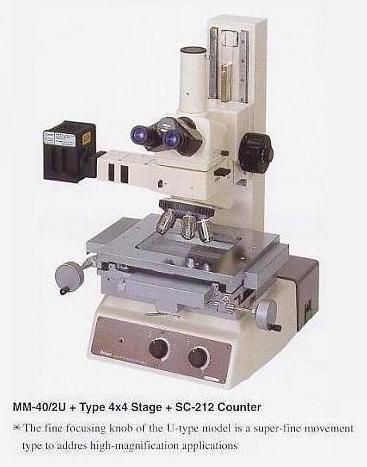

| MM－40/2U |  |
|
| • | 二段式中/微對焦旋鈕 |
| • | 金相照明 |
|
|
|
規格表 |
|||
|
形式 |
MM-60/L3U |
MM-40/L3U |
MM-40/2U |
|
目鏡筒 |
Erect image
trinocular TT*1/TI, inverted image binocular BI |
||
|
目鏡 |
CFWN10X, CFWN10X CM
(Field No.20) |
||
|
物鏡 |
CF Plan objectives
for metallurgical microscopes |
||
|
載物台 |
Type 10x6, Type
8x6, Type 6x4, Type 4x4, Type O3L, Type 2x2 |
Type 6x4, Type 4x4,
Type O3L, Type 2x2 |
|
|
最大工件高度 |
150mm (5.91 in.) |
||
|
光源 |
Epi-illuminator:
12V-50W |
||
|
Diascopic
illuminator: 6V-20W |
|||
|
尺寸/重量 |
350 x 415 x 624mm
(13.8 x 16.3 x 24.6 in.) |
||
|
approx. 50kg (110
lb.) |
|||
|
*1：Eyepiece
tubes TT are also available in crosshair reticle built-in types.
(Crosshair reticles cannot be removed.) |
|||
 |
 |
 |
||
| CF Plan EPI ELWD | CF Plan BD ELWD | CF Plan BD ELWD DIC | ||
|
|
CF Infinity
Corrected Optics Objectives |
|
|||
|
|
型式 |
Magnification |
N.A. |
W.D. (mm) |
|
|
|
Brightfield type |
|
|
|
|
|
|
CF E Plan EPI |
5X |
0.10 |
20.0 |
|
|
|
|
10X |
0.25 |
12.5 |
|
|
|
|
20X |
0.40 |
3.8 |
|
|
|
|
50X |
0.75 |
0.48 |
|
|
|
|
100X |
0.90 |
0.23 |
|
|
|
CF Plan EPI* |
1.5X |
0.045 |
3.6 |
|
|
|
|
2.5X |
0.075 |
8.8 |
|
|
|
|
5X |
0.13 |
22.5 |
|
|
|
|
10X |
0.3 |
16.5 |
|
|
|
|
20X |
0.46 |
3.1 |
|
|
|
|
50X |
0.8 |
0.54 |
|
|
|
|
100X |
0.95 |
0.3 |
|
|
|
CF Plan Apo EPI |
50X |
0.95 |
0.35 |
|
|
|
|
100X |
0.95 |
0.32 |
|
|
|
|
150XA |
0.95 |
0.2 |
|
|
|
|
200X |
0.95 |
0.2 |
|
|
|
* When using a 1.5X
objective, use an analyzer and a polarizer together. Otherwise, the
periphery of the image cannot be seen. |
|
|||
|
|
* NA值愈高則解析度愈高 |
|
|||
|
|
|
|
|
|
|
|
|
型式 |
Magnification |
N.A. |
W.D. (mm) |
|
|
|
Brightfield type |
|
|
|
|
|
|
CF E Plan BD |
5X |
0.10 |
12.0 |
|
|
|
|
10X |
0.25 |
7.0 |
|
|
|
|
20X |
0.40 |
3.1 |
|
|
|
|
50X |
0.75 |
0.54 |
|
|
|
|
100X |
0.90 |
0.34 |
|
|
|
CF Plan BD |
5X |
0.13 |
10.0 |
|
|
|
|
10X |
0.3 |
6.5 |
|
|
|
|
20X |
0.46 |
3.1 |
|
|
|
|
40X |
0.65 |
1.0 |
|
|
|
|
50X |
0.8 |
0.54 |
|
|
|
|
100X |
0.9 |
0.39 |
|
|
|
CF Plan Apo BD |
50X |
0.9 |
0.42 |
|
|
|
|
100X |
0.9 |
0.4 |
|
|
|
|
150XA |
0.9 |
0.29 |
|
|
|
|
200X |
0.9 |
0.3 |
|
|
|
CF Plan BD DIC |
5XA |
0.13 |
10.0 |
|
|
|
|
10X |
0.3 |
6.5 |
|
|
|
|
20X |
0.46 |
3.1 |
|
|
|
|
50X |
0.8 |
0.54 |
|
|
|
|
100X |
0.9 |
0.39 |
|
|
|
|
|
|
|
|
|
|
型式 |
Magnification |
N.A. |
W.D. (mm) |
|
|
|
Brightfield type |
|
|
|
|
|
|
CF Plan EPI ELWD |
20X |
0.40 |
11.0 |
|
|
|
|
50X |
0.55 |
8.7 |
|
|
|
|
100X |
0.8 |
2.0 |
|
|
|
CF Plan BD ELWD |
20X |
0.4 |
11.0 |
|
|
|
|
50X |
0.55 |
8.2 |
|
|
|
|
100X |
0.8 |
2.0 |
|
|
|
CF Plan BD ELWD DIC |
20X |
0.4 |
11.0 |
|
|
|
|
50X |
0.55 |
8.2 |
|
|
|
|
100X |
0.8 |
2.0 |
|
|
|
CF Plan EPI SLWD |
10X |
0.21 |
20.3 |
|
|
|
|
20X |
0.35 |
2.05 |
|
|
|
|
50X |
0.45 |
13.8 |
|
|
|
|
100X |
0.73 |
4.7 |
|
|
|
Special-use type |
|
|
|
|
|
|
CF Plan EPI DI |
10X |
0.3 |
7.4 |
|
|
|
For interferometry |
20X |
0.4 |
4.7 |
|
|
|
|
50X |
0.55 |
3.4 |
|
|
|
CF Plan EPI TI |
2.5X |
0.75 |
10.3 |
|
|
|
For interferometry |
5X |
0.13 |
9.3 |
|
|
|
CF Plan LCD CR |
20X |
0.4 |
10.11~10.54 |
|
|
|
For inspection of
LCDs (With cover glass correction 0.6-1.2mm) |
50X |
0.55 |
7.71~8.15 |
|
|
|
100X |
0.8 |
1.10~1.12 |
|
|
 |
 |
 |
||
| Erect image trinocular TT | Erect image trinocular TI | Inverted image binocular BI | ||

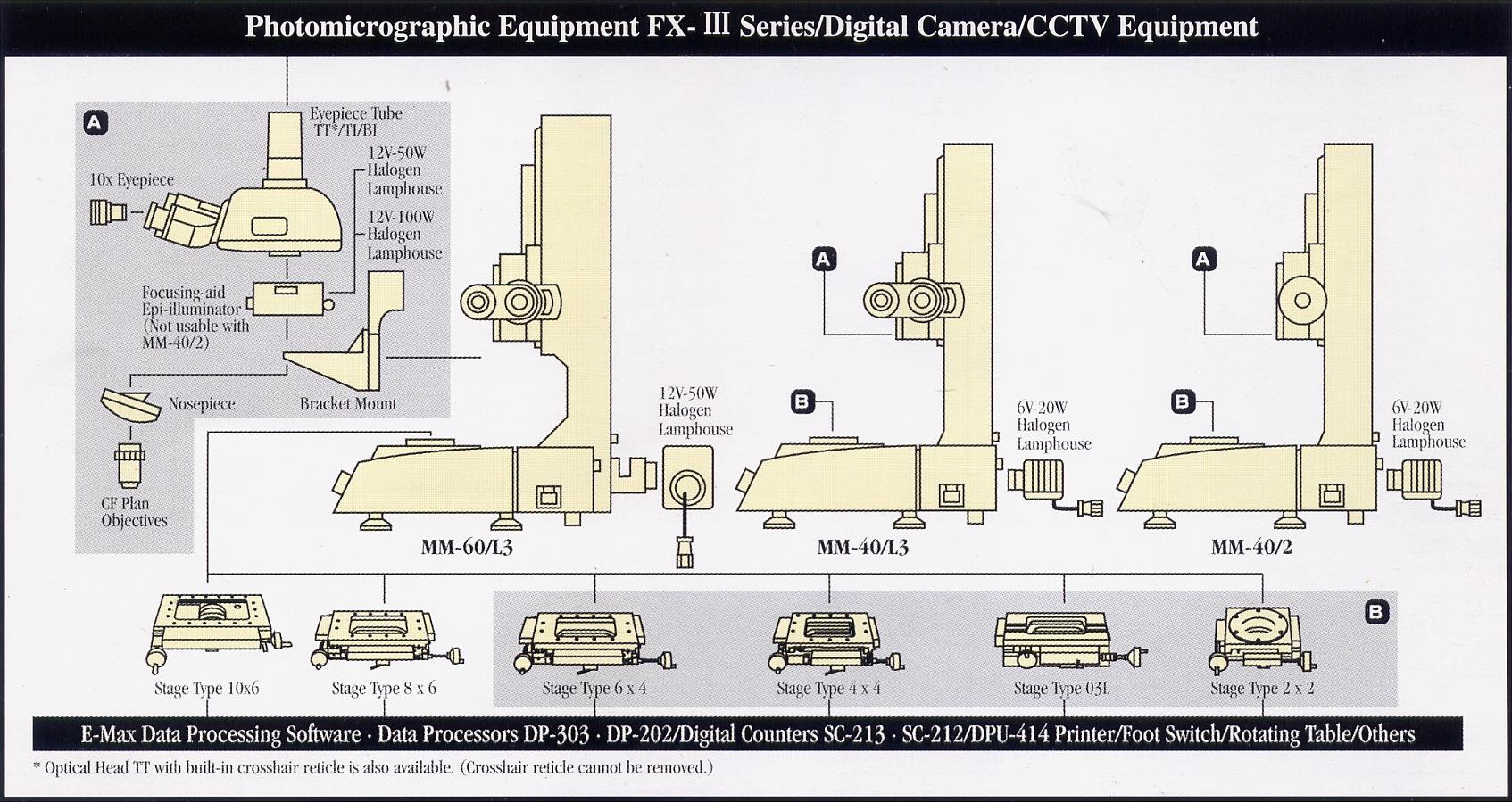

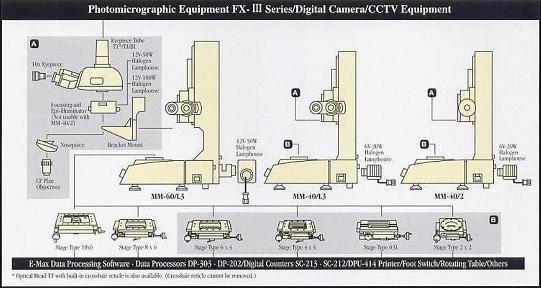

| 組合圖 | |
|
|
|
 |
 |
 |
 |
 |
 |
