| MM－40/60系列 |
| Nikon 多樣化、高精度之載物台可供選擇 |
|

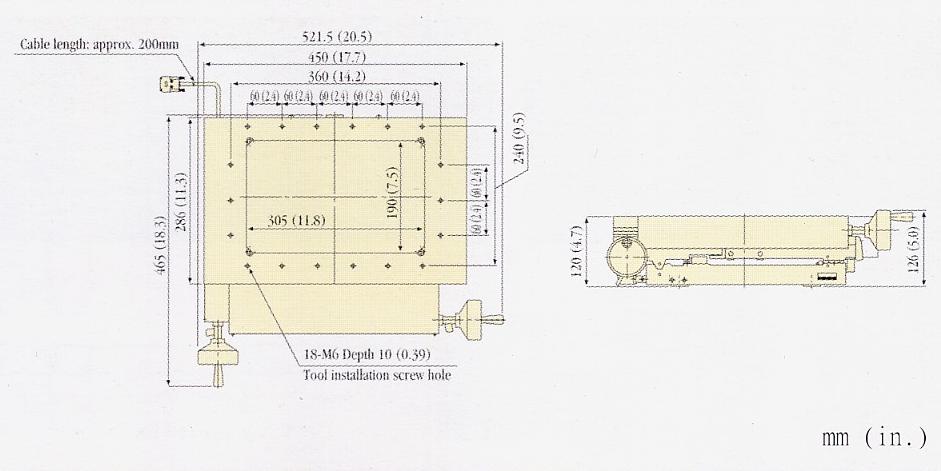

載物台型式10X6 |
For
MM-60 |
|

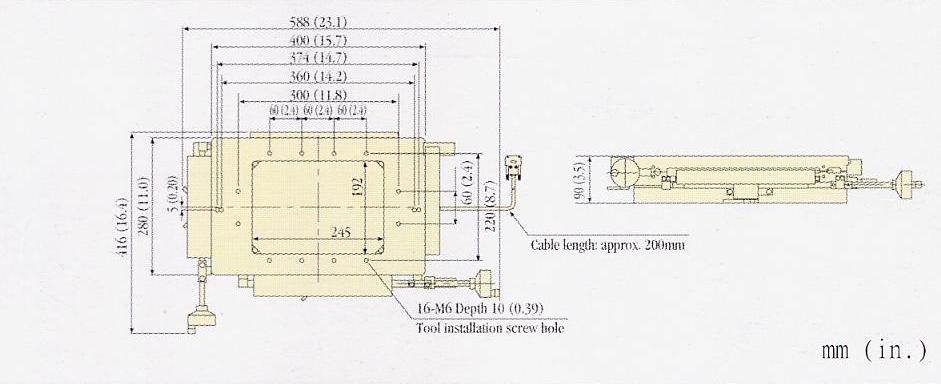

載物台型式8X6 |
For
MM-60 |
|
|
||||
|

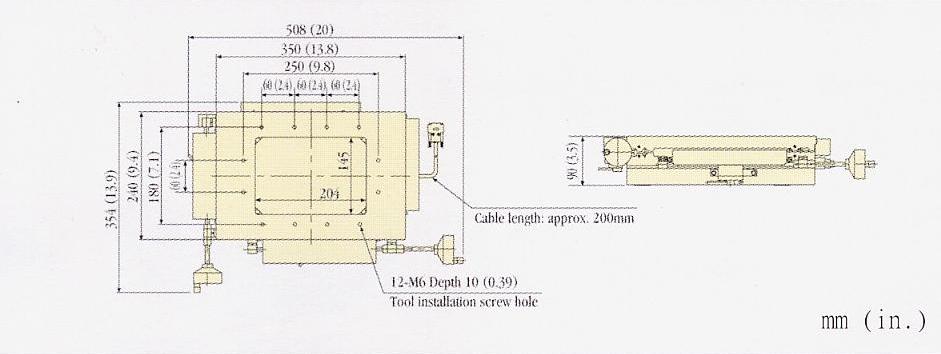

載物台型式6X4 |
For
MM-60/40 |
|

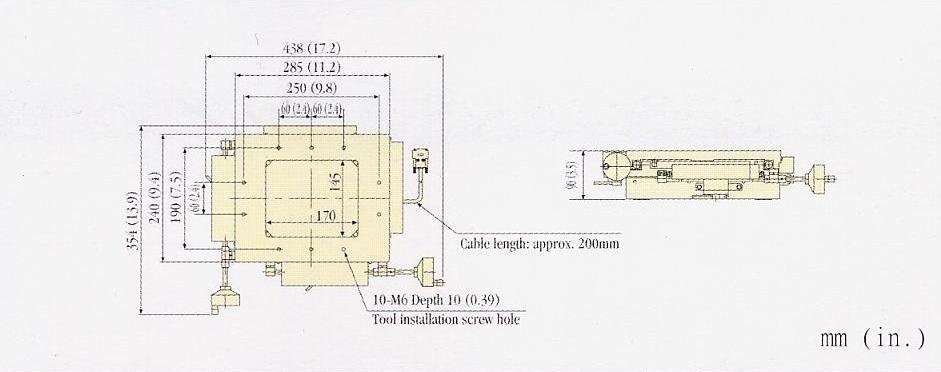

載物台型式4X4 |
For
MM-60/40 |
|
|
||||
|

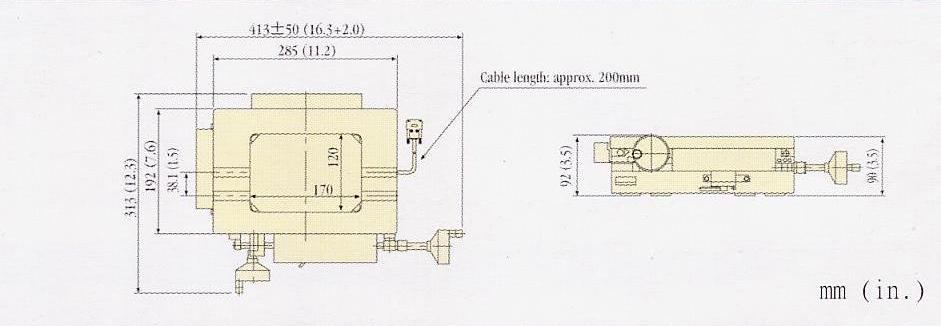

載物台型式O3L |
For
MM-60/40 |
|

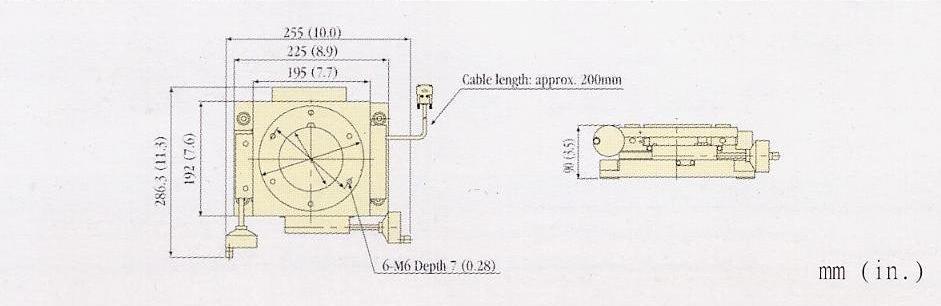

載物台型式2X2 |
For
MM-60/40 |
|
|
||||
| 載物台規格表 |
|
Type |
Surface
area (in.) |
Stage
glass dimensions mm (in.) |
Crosswide
travel mm (in.) |
Reading
method |
|
10x6 |
450x286 (17.7x11.3) |
305x190 (12.0x7.5) |
250x150 (9.8x5.9) |
Linear encoder |
|
8x6 |
400x280 (15.8x11.0) |
245x192 (9.6x7.6) |
200x150 (7.9x5.9) |
Linear encoder |
|
6x4 |
350x240 (13.8x9.5) |
204x145 (8.0x7.5) |
150x100 (5.9x3.9) |
Linear encoder |
|
4x4 |
285x240 (11.2x9.5) |
170x145 (6.7x5.7) |
100x100 (3.9x3.9) |
Linear encoder |
|
O3L |
285x192 (11.2x7.6) |
170x120 (6.7x4.7) |
100x50 (3.9x2.0) |
Linear encoder |
|
2x2 |
195x192 (7.7x7.6) |
107 in diameter |
50x50 (2.0x2.0) |
Linear encoder |
| 載物台規格表（續） |
|
Type |
Min.
reading mm (in.) |
Stage
top |
Tool
installation |
Loading
capacity kg (lb.) |
Weight
kg (lb.) |
|
10x6 |
0.0005 (0.00002) |
－ |
N/A (Screw) |
20 (44) |
Approx. 50(110) |
|
8x6 |
0.0005 (0.00002) |
－ |
N/A (Screw) |
15 (33) |
Approx. 36(79) |
|
6x4 |
0.0005 (0.00002) |
－ |
N/A (Screw) |
10 (22) |
Approx. 27(60) |
|
4x4 |
0.0005 (0.00002) |
－ |
N/A (Screw) |
6 (12) |
Approx. 23(51) |
|
O3L |
0.0005 (0.00002) |
－ |
Dovetail |
5 (11) |
Approx. 15(33) |
|
2x2 |
0.0005 (0.00002) |
360 rotatable |
N/A (Screw) |
5 (11) |
Approx. 13(29) |
|
Stage
Accessories |
Specific
for each stage |
| Rotating Table Type 3 (for 6x4, 4x4) | |
 |
尺寸圖 |

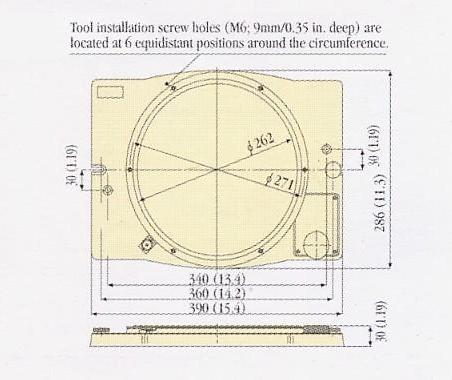

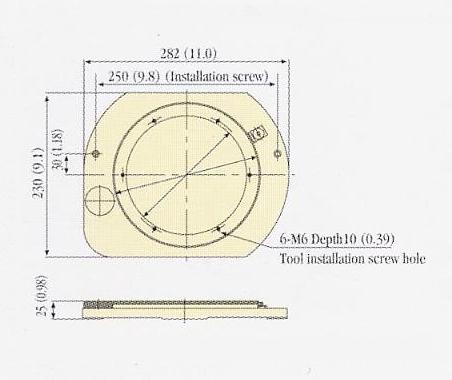

| Rotating Table Type 4 (for 10x6, 8x6, 100B) | |
 |
尺寸圖 |

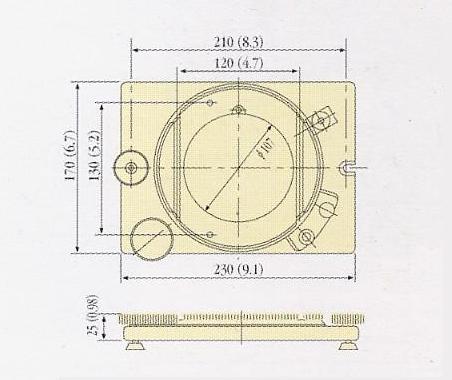

| Goniometer Type 2 (for O3L) | |
 |
尺寸圖 |
|
Rotating Table Specifications |
|||
|
|
Rotating
Table Type 3 |
Rotating
Table Type 4 |
Goniometer
Type 2 |
|
Table
diameter |
204mm
(8.0 in.) |
282mm (11.0 in.) |
160mm (6.3 in.) |
|
Glass
insert diameter |
165mm
(6.5 in.) |
262mm (10.3 in.) |
107mm (4.2 in.) |
|
Rotation
range |
360
(uncalibrated) |
360
(uncalibrated) |
360
(uncalibrated) |
|
Tool
installation |
Screw
hole 6-M6 |
Screw
hole 6-M6 |
T groove/Screw
hole 2-M6 |
|
Weight |
Approx.
5kg (11 lb.) |
Approx.
8kg (17.6 lb.) |
Approx.
4kg (9 lb.) |

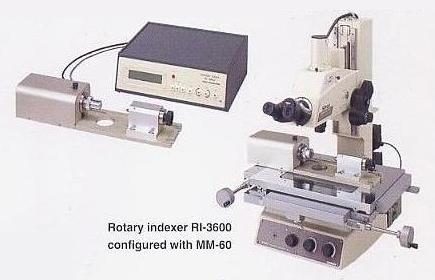

| Rotary Indexer RI－3600 |
| The rotary indexer can rotate and display the image of a workpiece with a minute 0.01 resolution. |
|
Minimum reading |
1” |
|
Control resolution |
0.01° |
|
Max. workpiece
diameter |
75mm |
|
Operation mode |
Auto or
Manual |
|
Points that can be
preset |
Point of
origin and 3 other points |
|
Compatible stages |
10x6, 8x6,
6x4, and other NEXIV stages |
|
|

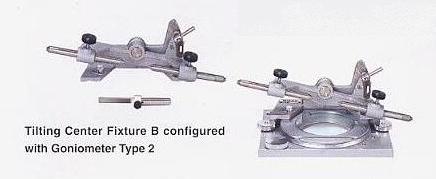

| Tilting Center Fixture B |
| Used to hold machined workpieces. |
|
Max. workpiece
diameter and length when held level |
ψ68x120mm
(2.7x4.7 in.) |
|
Center height |
45mm (1.8
in.) |
|
Tilting angle |
10° (in 1°
increments) |
|
Weight |
Approx.
2.2kg (4.9 lb.) |
|
|
 |
 |
 |
 |
 |
 |
